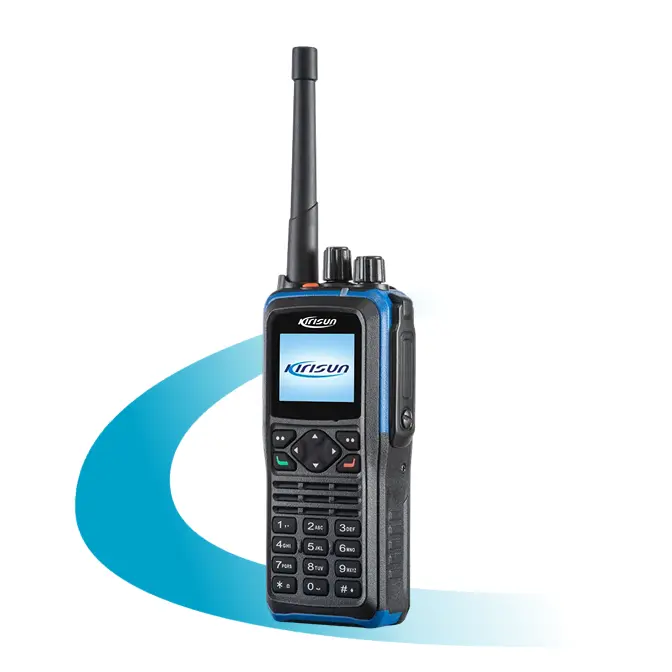

Kirisun Intrinsically Safe DMR portable radio DP810 Ex is specially designed and engineered BASED ON ATEX & IECEx and IP68 standards to operate safely in hazardous environments providing additional safety and reliability keeping your workers safe in the toughest environments such as flammable gases and combustible dust and other hazards.



Enhanced Safety
Kirisun DP810 ensures your safety with Built-in Man-down, GPS and Lone Worker functions, as well as a dedicated emergency button, which could be easily triggered in case of any accident, to send an alarm and initiate a voice call to a pre-programmed work fellow or group immediately.
High-Capacity and Safe Design Battery
1960mAh battery supplied in the standard package, operates up to 15-18 hours in 5-5-90 mode. The battery circuitry is fully encapsulated to prevent damaged by high temperature and humidity.
High Quality Audio
Extreme high volume (up to 130 decibels) ensures listening and speaking clearly in a noisy environment to satisfy well communication in heavy equipment, engines, trucks, and factories.
GPS Location
Integrated GPS enables real time tracking of your team members.
Encryption for Communication Security
It provides basic and enhanced encryption capability, including ARC4 and enhanced AES/DES up to 256 digit-encryption algorithms. It ensures secure communication on voice call and data transfer among team members.
Vibration
Vibration alert reminds reception of message and calls in noisy environment. Supports call alert vibration, incoming call vibration, incoming SMS vibration, emergency alarm vibration.
Transmit Interrupt
Enables users to interrupt another radio call to deliver critical communication exactly when and where it is needed.
Multiple Signaling
Multiple advanced analog signaling, including MDC-1200, DTMF, 2-Tone and 5-Tone, providing higher expansion capacity in current communication systems.
Dual-slot Pseudo Trunk
This feature can improve frequency efficiency by allocating a free slot to a member providing you to communicate timely in emergencies.
DMR III and MPT Working Mode
It supports DMR III and MPT1327 working mode easily by license control.
Frequency Range: 350-400MHz, 400-470MHz
Channel Capacity: 1024
Zone Capacity: 248
Channel Spacing: 12.5kHz/20kHz/25kHz
Operating Voltage: 7.4V DC±20%
Battery (Standard): 1960mAh
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Dimensions (H·W·D) (with standard battery, without antenna): 157.5mmx56mmx41.4mm
Weight (with standard battery): 500g
LCD Display: 1.77inch, 5 rows
Sensitivity Analog: 0.22μV(12dB SINAD)
Sensitivity Digital: 0.22μV/BER5%
Selectivity TIA-603 ETSI: 60dB@12.5kHz, 70dB@20/25kHz(TIA-603) 60dB@12.5kHz,
Intermodulation: 70dB@20/25kHz(ETSI)
Spurious Response Rejection TIA-603 ETS: 70dB@12.5kHz/25kHz(TIA-603) 65dB@12.5kHz/25kHz(ETSI) 70dB@12.5/20/25kHz(TIA-603) 70dB@12.5/20/25kHz(ETSI)
Hum and Noise: 40dB@12.5KHz, 45dB@20/25KHz
Rated Audio Power Output: 1W
Audio Response: +1~-3dB
Conducted Spurious Emission: -57dBm@<1GHz,-47dBm@1GHz
TRANSMITTER
RF Power Output: ≤ 2W
FM Modulation: 11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
4FSK Digital Modulation: 12.5kHz Data: 7K60F1D&7K60FXD,12.5kHz Voice: 7K60F1E&7K60FXE Combination of 12.5kHz Voice and Data: 7K60F1W
Modulation Limiting: ±2.5kHz@12.5kHz, ±4.0kHz@20kHz, ±5.0kHz@25kHz
FM Hum & Noise: 40dB@12.5kHz, 45dB@20/25kHz
Adjacent Channel Power: 60dB@12.5kHz, 70dB@20/25kHz
Audio Response: +1~-3dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE+2™
Digital Protocol: ETSI-TS102 361-1,-2,-3 ,-4
ENVIRONMENT SPECIFICATIONS
Operating Temperature: -20℃~ +50℃
Storage Temperature: -40℃~+85℃
ESD: IEC610000-4-2(Level4) ±4kV(Contact) ±8kV(air)
American Military Standard: MIL-STD-810-C/D/E/F/G
Dust & Water Protection: IP68 Standard
Humidity: Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration: Per MIL-STD-810 C/D/E/F/G Standard
Anti-explosion levels (ATEX): II 2G Ex ib IIC T4(Gas) II 2D Ex ib IIIC T120℃ IP5X(Dust)
Anti-explosion levels(IECEx): Ex ib IIC T4(Gas) Ex ib IIIC T120℃ IP5X(Dust)
GPS
TTFF (Time To First Fix) Cold Start: <1 minute
TTFF (Time To First Fix) Hot Start: 10 seconds
Horizontal Accuracy: 10m
