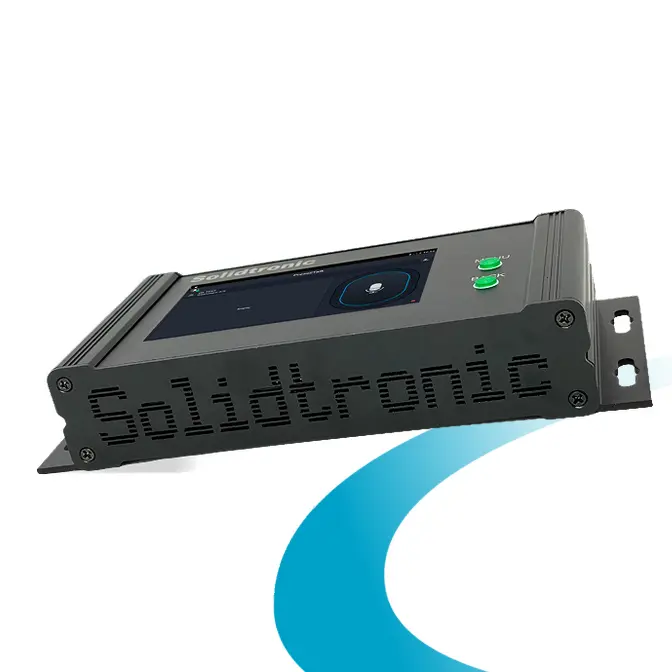

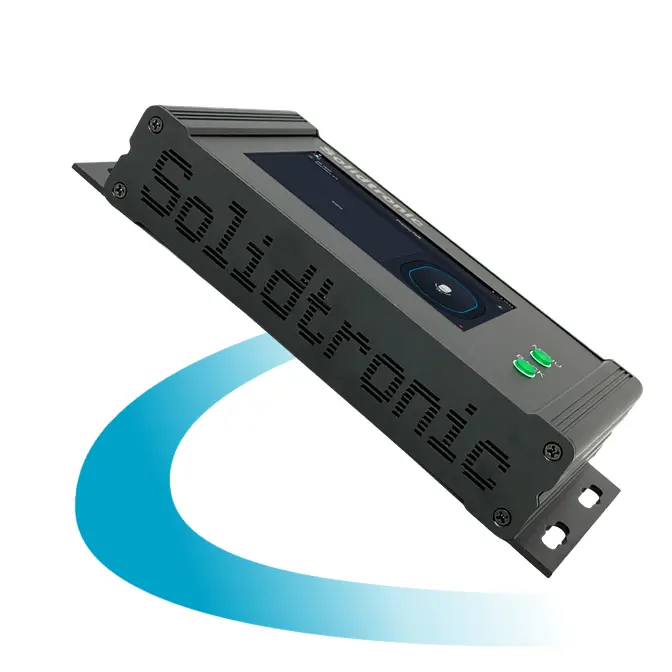

The ST-RoIP5+D Series Standalone RoIP Gateway is the next-generation radio over IP gateway. It is designed to interconnect PTToC platforms with any radio systems, including conventional trunked analog FM, ETSI DMR, ETSI TETRA, APCO P25 FDMA, and NXDN.
A Radio Over IP Network Gateway bridges traditional two-way radio systems and modern IP networks, expanding communication range and flexibility.
Stable Bandwidth 10/100-Base-T Ethernet Connection
End of Transmission Roger Beep Alert for Radio Channel
ADF-2 to support 2-Way Radio Repeater System
Embedded Android 4.0.3 OS
Pre-installed iCallX APP
Support different brands and different type radios
Built-in ARM CPU standalone Radio-over-IP Network Gateway
Install in a second, no IT expert technique is required
PTToC-COS/COR PTT Control Technology
Very easy operation
Radio-COS/COR PTT Control Technology
Very fast and stable PTT exchange performance by Super Dynamic iDats-4 PTT Control Technology
Power Supply: DC 5V
Power Consumption: 600mA (Typical)
Ethernet: 0/100 Base-T
CPU: ARM
Display: 4.3 inch Touch Screen LCD
Control Buttons: MENU and BACK
Pre-installed Communication App: iCallX APP
Carrier Detect Activation Time: <0.2 Second
Digital Interoperability Stabilizer: 0.5 Second(OFF) or 2 Seconds(ON) selectable
Dimensions: 160(W) x 100(D) x 40(H) mm
Weight: 450 g
AC Adapter: Input AC100-240V, Output DC5V 2A
